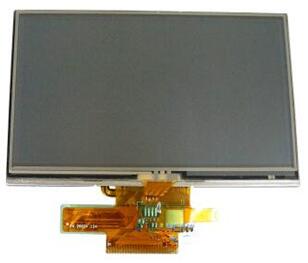

TFT LCDAUO 4.3 inch TFT LCD A043FW05 V4 TP 480*272
Mouse over to zoom in
- Product 182/186
-
Brand: AUO
Model: A043FW05 V4
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare (Haze 8%), Hard Coating (3H)
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 15/35 (Typ.)(Tr/Td)
Viewing Angle: 65/65/50/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 9S1P WLED
Frame Rate: 60Hz
Interface Type: Parallel RGB + SPI, 50 pins, FPC
Power Supply: 3.3/3.3V (Typ.) (VDD/VDDIO)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel
