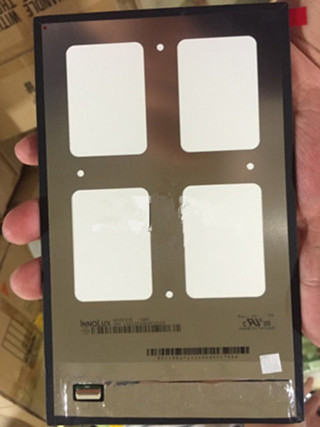

INNOLUX 8.0 inch 31P TFT LCD N080ICE-GB0 Rev. A1
Mouse over to zoom in
Product 55/121

Price: US$34.00   Submit a wholesale Inquiry
Quantity:



Brand: INNOLUX

Model: N080ICE-GB0 Rev. A1

Diagonal Size: 8.0 inch

Type: a-Si TFT-LCD LCM

Pixel Format: 800(RGB)×1280 WXGA

Configuration: RGB Vertical Stripe

Surface: Hard Coating, Antireflection

Brightness: 400 cd/m² (Typ.)

View Direction: Symmetry

Contrast Ratio: 800:1 (Typ.) (TM)

Response Time: 20 (Typ.)(Tr+Td) ms

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)

Operating Mode: AAS, Normally Black, Transmissive

Support Color: 16.7M   60% (CIE1931)

Lamp Type: WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: 31 pins  MIPI (4 data lanes),  Connector

Power Supply: 1.8/3.3V (Typ.) (VDDI/VCI)

Operating Temperature: -10 ~ 60°C

Storage Temperature: -20 ~ 70 °C

Application: Pad & Tablet
