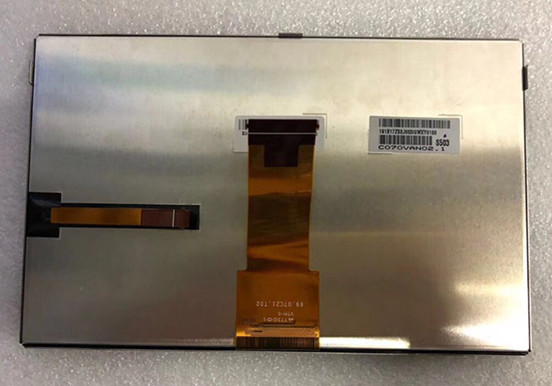

TFT LCDAUO 7.0 inch TFT LCD C070VAN02.1 WVGA 800*480
Mouse over to zoom in
- Product 319/374
-
Brand: AUO
Model: C070VAN02.1
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Horizontal Stripe
Surface: Antiglare
Brightness: 750 cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM)
Response Time: 15/15 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Support Color: 16.7M 72% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 8-bit), 40 pins, FPC
Power Supply: 3.3/13/18/-8V (Typ.) (VDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Vibration Level: 2.9G (28.4 m/s²)
Application: All Car Display Panel
