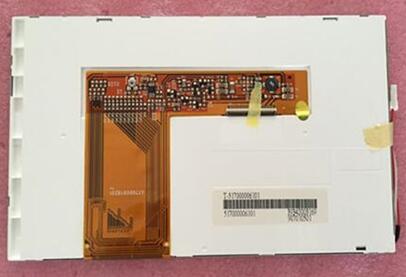

TFT LCDCMO 7.0 inch TFT LCD Panel LW700AT9603 800*480
Mouse over to zoom in
- Product 294/374
-
Brand: CMO
Model: LW700AT9603
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 5/11 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/60/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: /
Lamp Type: 3S8P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 6-bit)
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All VOIP Phone Panel, All MP4 PMP Panel
