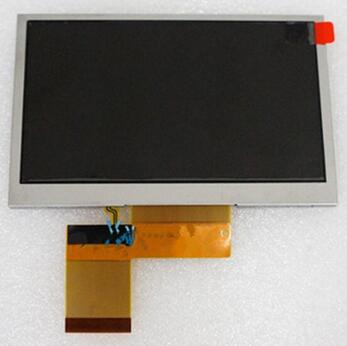

TFT LCD4.3 inch TFT LCD Common Screen LQ043T3DG02
Mouse over to zoom in
- Product 126/186
-
Brand:
Model: LQ043T3DG02
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480*272(RGB) WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (2H)
Brightness: 480 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Response Time: 8/21 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/60/80 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: 9S1P WLED
Frame Rate:
Touch Panel: Without
Interface Type: 67Pin, Parallel RGB (1 ch, 6-bit) + SPI, FPC
Power Supply: 3.15/3.15V (Typ.) (VDDIO/VCI)
Operating Temperature: -10 ~ 70°C
Storage Temperature: -30 ~ 85 °C
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
