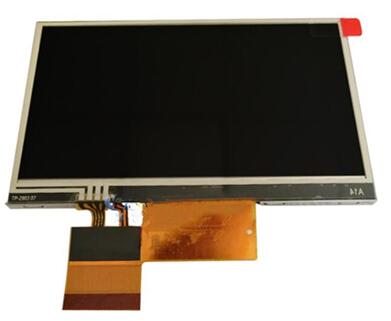

TFT LCDSHARP 4.3 inch TFT LCD Screen LQ043T1DG18 TP
Mouse over to zoom in
- Product 141/186
-
Brand: SHARP
Model: LQ043T1DG18
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 8/22 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/55/80 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: WLED
Frame Rate:
Touch Panel:
Interface Type: Parallel RGB (1 ch, 8-bit)
Power Supply: 3.3V (Typ.)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -25 ~ 70 °C
Application: Handheld & PDA, Industrial Application Panel
