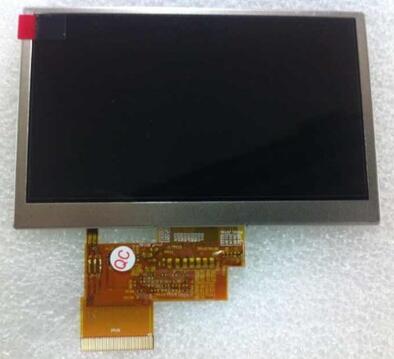

TFT LCDCPT 4.3 inch 40P TFT LCD Screen CLAA043JD02CW
Mouse over to zoom in
- Product 138/186
-
Brand: CPT
Model: CLAA043JD02CW
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 600 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.2M 50% (CIE1931)
Lamp Type: 7S2P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 85 °C
Application: Industrial Application Panel, Car Display Panel
