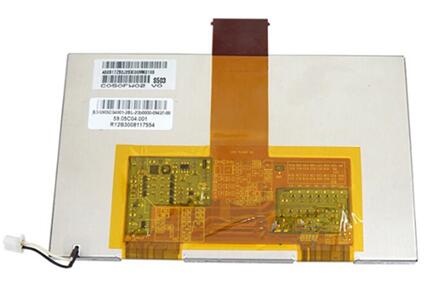

TFT LCDAUO 5.0 inch TFT LCD C050FW02 V0 No TP 480*234
Mouse over to zoom in
- Product 87/100
-
Brand: AUO
Model: C050FW02 V0
Diagonal Size: 5.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×234
Configuration: RGB Vertical Stripe
Surface:
Brightness: 700 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Response Time: 16 (Typ.)(Tr+Td) ms
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.2M
Lamp Type: 6S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 40 pins Parallel RGB (1 ch, 8-bit) , FPC
Power Supply: 3.3V (Typ.)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: Car Display Panel
