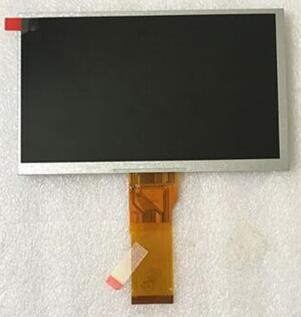

TFT LCDTIANMA 7.0 inch 50P TFT LCD TM070RDH10 800*480
Mouse over to zoom in
- Product 157/374
-
Brand: TIANMA
Model: TM070RDH10
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: 3S8P WLED
Frame Rate: 60Hz
Interface Type: Parallel RGB (1 ch, 8-bit) , FPC, 50 pins
Power Supply: 3.3/12.5/22.0/-7.0V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel, Industrial Application Panel
