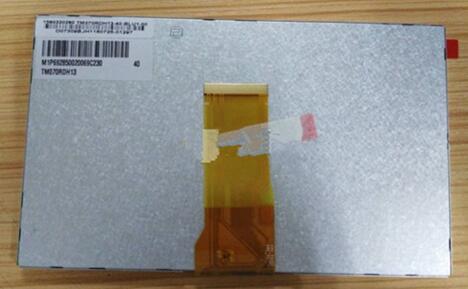

TFT LCDTIANMA 7 inch TFT LCD Panel TM070RDH13 800*480
Mouse over to zoom in
- Product 303/374
-
Brand: TIANMA
Model: TM070RDH13
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 80/80/60/80 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K/16.7M 50% (CIE1931)
Lamp Type: 3S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 6/8-bit), 50 pins, FPC
Power Supply: 3.3/10.4/16.0/-7V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel
