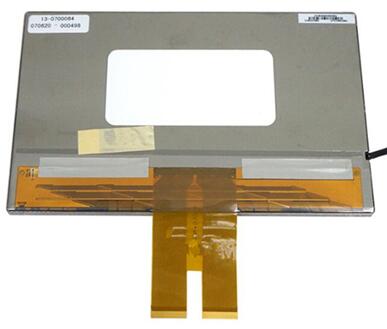

TFT LCDPVI 7.0 inch TFT LCD Screen PM070WX1 800*480
Mouse over to zoom in
- Product 278/374
-
Brand: PVI
Model: PM070WX1
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 15/25 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/40/55 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: 1 pcs CCFL
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 60 pins TTL (1 ch, 6-bit) , FPC
Power Supply: 3.3/3.3/9.5/17.0/-8.0V (Typ.) (VCC/VDD1/VDD2/VGG/VEE)
Operating Temperature: -20 ~ 80°C
Storage Temperature: -30 ~ 80 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel
