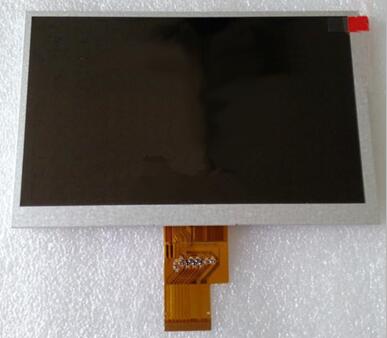

TFT LCDINNOLUX 7.0 inch TFT LCD Screen ZJ070NA-01P
Mouse over to zoom in
- Product 242/374
-
Brand: INNOLUX
Model: ZJ070NA-01P
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haze 25%)
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 75/75/70/75 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K / 16.7M 70% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6/8-bit) , 40 pins, FPC
Power Supply: 3.3/11.0/20.0/-6.8V (Typ.) (DVDD/AVDD/VGH/VHL)
Operating Temperature: -30 ~ 80°C
Storage Temperature: -30 ~ 80 °C
Application: Car Display Panel
