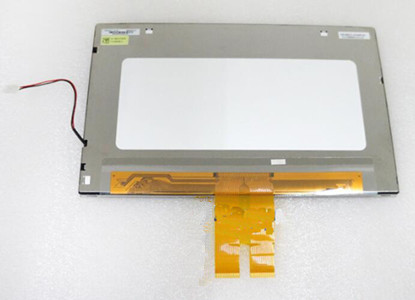

TFT LCDPVI 9 inch TFT LCD Panel PM090WY2 No TP 800*480
Mouse over to zoom in
- Product 23/35
-
Brand: PVI
Model: PM090WY2
Diagonal Size: 9.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 750:1 (Typ.) (TM)
Response Time: 5/20 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/50 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: 3S14P WLED
Frame Rate:
Interface Type: TTL (1 ch, 6-bit), 60 pins , FPC
Power Supply: 3.3/9.9/3.3/18.6/-6.3V (Typ.) (VDD1/VDDD2/VCC/VGH/VGL))
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: Car Display Panel, Industrial Application Panel
