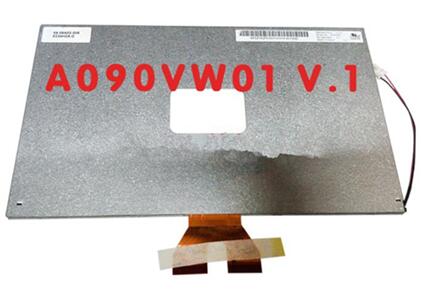

AUO 9.0 inch TFT LCD Screen A090VW01 V1 800*480
Mouse over to zoom in
Product 31/35

Price: US$23.80   Submit a wholesale Inquiry
Quantity:



Brand: AUO

Model: A090VW01 V1

Diagonal Size: 9.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 800(RGB)×480,  WXGA

Configuration: RGB Vertical Stripe

Surface: Antiglare, Hard coating (3H)

Brightness: 250 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.) (TM)

Response Time: 4/12 (Typ.)(Tr/Td) ms

Viewing Angle: 70/70/55/70 (Typ.)(CR≥10)

Operating Mode: TN, Normally White, Transflective

Support Color: 16.7M  48% (CIE1931)

Lamp Type: 3S8P WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface: TTL (1 ch, 8-bit)+SPI, 68 pins, FPC

Power Supply: 3.3/5.5/-5.5/10/-13V (Typ.) (VCC/VDPA/VDNA/VGH/VFL)

Operating Temperature: -10 ~ 60°C

Storage Temperature: -20 ~ 70 °C

Application: Digital Photo Frame Panel,  Portable DVD Player Panel
