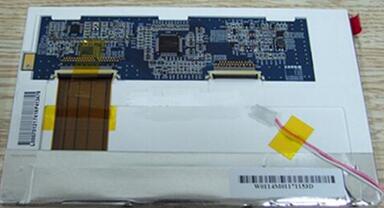

TFT LCDCPT 7 inch TFT LCD CLAA070LB01CW 800*480 No TP
Mouse over to zoom in
- Product 343/374
-
Brand: CPT
Model: CLAA070LB01CW
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 220 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 7/13 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/45/45 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 51% (CIE1931)
Lamp Type: 1 pcs CCFL
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 6-bit) , Connector, 40 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: MP4 PMP Panel, Digital Photo Frame Panel, Portable DVD Player Panel
