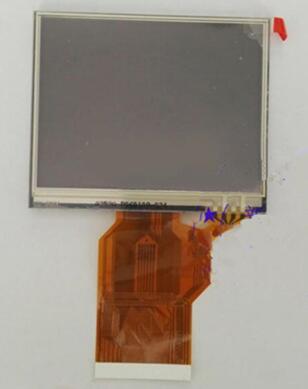

TFT LCDINNOLUX 3.5 inch TFT LCD Screen PT035TN01 V.5 TP
Mouse over to zoom in
- Product 154/203
-
Brand: INNOLUX
Model: PT035TN01 V.5
Diagonal Size: 3.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240, QVGA
Configuration: RGB Vertical Stripe
Surface: Hard coating (3H)
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
Response Time: 15/20 (Typ.)(Tr/Td) ms
Viewing Angle: 65/65/45/65 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, TMR
Support Color: 16.7M
Lamp Type: 6S1P WLED
Frame Rate:
Touch Panel: Without
Interface Type: Digital RGB (8/24-bit)+SPI, CCIR601/656, 60 pins, FPC
Power Supply: 3.3/5.0/15.0/-10V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel
