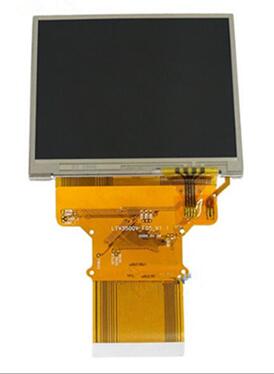

TFT LCDSAMSUNG 3.5 inch TFT LCD Screen LTV350QV-F05 TP
Mouse over to zoom in
- Product 126/203
-
Brand: SAMSUNG
Model: LTV350QV-F05
Diagonal Size: 3.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240 QVGA
Configuration: RGB Vertical Stripe
Surface: Hard Coating (3H)
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 60/60/50/55 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, TMR
Support Color: 16.7M
Lamp Type: 6S1P WLED
Frame Rate: 60Hz
Touch Panel: Yes
Interface Type: 60 pins Parallel RGB (1 ch, 8-bit) + SPI, FPC
Power Supply: 3.3/4.9/18.0/-10.0V (Typ.) (VCC/DDVDH/VGH/VGL)
Operating Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Digital Still Camera Panel, Digital Video Camera Panel, Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
