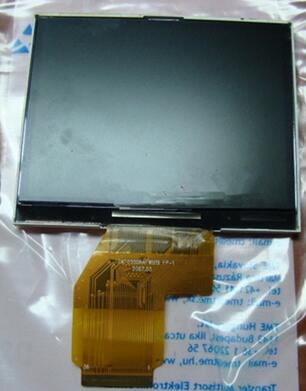

TFT LCDTIANMA 3.5 inch TFT LCD Screen TMT035DNAFWU19
Mouse over to zoom in
- Product 161/203
-
Brand: TIANMA
Model: TMT035DNAFWU19
Diagonal Size: 3.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240 QVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
Response Time: 10/25 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: 6S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Serial RGB (8-bit) +SPI , CCIR601/656, 36 pins, FPC
Power Supply: 3.3/5.0/15.4/-7.7V (Typ.) (VCC/VDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel
