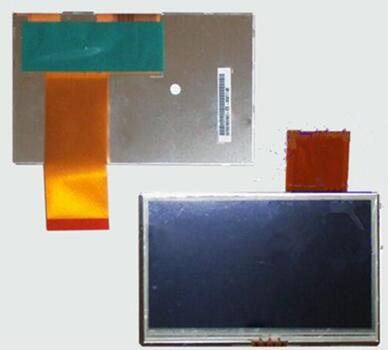

TFT LCDAUO 4.0 inch 50P TFT LCD Panel A040FL01 V2 480*272
Mouse over to zoom in
- Product 47/55
-
Brand: AUO
Model: A040FL01 V2
Diagonal Size: 4.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 20/20 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: ATR-MVA, Normally Black, Transflective
Support Color: 16.7M
Lamp Type: 8S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 50 pins Parallel RGB (1 ch, 8-bit) + SPI, FPC
Power Supply: 3.3/3.3V (Typ.) (VDD/VDDIO)
Operating Temperature: 0 ~ 60°C
Storage Temperature: -25 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
