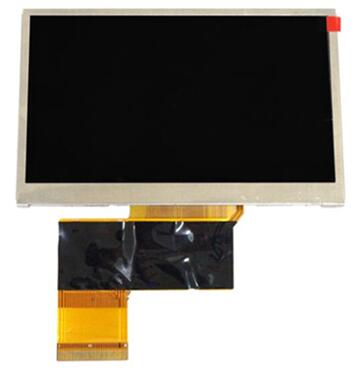

TFT LCDSAMSUNG 4.0 inch TFT LCD Screen LTE400WQ-F01
Mouse over to zoom in
- Product 23/55
-
Brand: SAMSUNG
Model: LTE400WQ-F01
Diagonal Size: 4.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480×272(RGB) WQVGA
Configuration: RGB Horizontal Stripe
Surface:
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
Response Time: 5/20 (Typ.)(Tr/Td) ms
Viewing Angle: 65/65/50/55 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: 6S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Power Supply: 2.5/3.3V (Typ.) (VDD)
Operating Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
