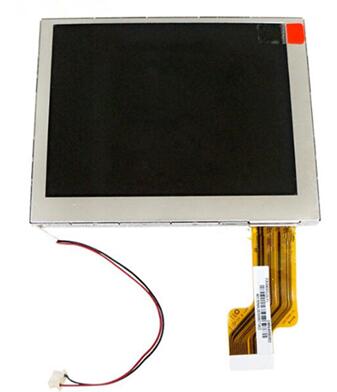

TFT LCDPVI 4.0 inch TFT LCD Screen PA040XS2 320*234
Mouse over to zoom in
- Product 37/55
-
Brand: PVI
Model: PA040XS2
Diagonal Size: 4.0 inch
Type: a-Si TFT-LCD, CELL
Pixel Format: 320(RGB)×234
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 0 cd/m² (Typ.)
Contrast Ratio: 350:1 (Typ.) (TM)
Response Time: 15/25 (Typ.)(Tr/Td) ms
Viewing Angle: 50/50/15/35 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: Full Color
Lamp Type: No B/L
Frame Rate:
Interface Type: TFT Specific Analog, 28 pins , FPC
Power Supply: 3.3/3.3/5.0/17.0/-12.0V (Typ.) (VCC/VDD/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Car Display Panel, Portable Navigation Device Panel, Pocket TV Panel, Video Door Phone Panel
