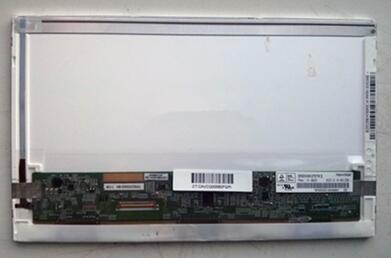

TFT LCDHannStar 10.1 inch TFT LCD Screen HSD101PFW2-B00
Mouse over to zoom in
- Product 104/108
-
Model: HSD101PFW2-B00
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 4/12 (Typ.)(Tr/Td) ms
Viewing Angle: 45/45/15/35 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 50% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 40 pins LVDS (1 ch, 6-bit) , Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel, Netbook PC Panel
