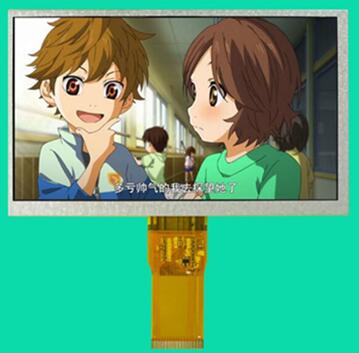

IPS 7.0 inch 50P 16.7M 24Bit RGB TFT LCD 1024*600
Mouse over to zoom in
Product 338/374

Price: US$29.60   Submit a wholesale Inquiry
Quantity:



Size: 7.0 inch IPS

LCD Type: TFT

Number of Dots: 1024(RGB)*600

LCD Dimension: 164.90*100.00*3.52mm

Active Area: 154.2144*85.92mm

Dot Pitch: 0.1506*0.1432mm

PIN NO.: 50P

Display Color: 16.7M

Backlight: White LED

Color Pixel Arrangement: RGB Stripe

Polarizer Mode: Transmissive Type, Normally Black Mode

Viewing Direction: Free (85/85/85/85)

Data Interface: 24bit RGB interface

Brightness: 250 (typ.)

Contrast Ratio (CR): 500:1

NTSC (Color gamut): 50%

Backlight Voltage: 9.6V  (typ.)

Backlight Current: 140mA  (typ.)

Operating Temp.: -10 ~ 60 degree

Storage Temp.: -20 ~ 70 degree

ROSH
