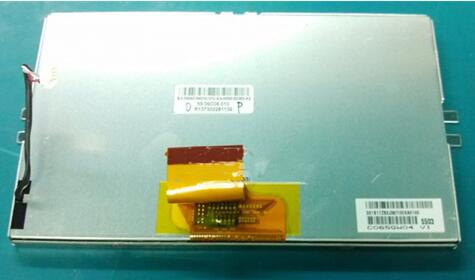

TFT LCDAUO 6.5 inch TFT LCD Panel C065GW04 V1 400*240
Mouse over to zoom in
- Product 25/28
-
Brand: AUO
Model: C065GW04 V1
Diagonal Size: 6.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 400(RGB)×240 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Antireflection
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.) (TM)
Response Time: 15/30 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: MVA, Normally Black, Transflective
Support Color: 262K
Lamp Type: 6S3P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 50 pins Parallel RGB (1 ch, 6-bit) FPC
Power Supply: 3.3/13.0/15.0/-7.0V (Typ.) (VDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: Car Display Panel
