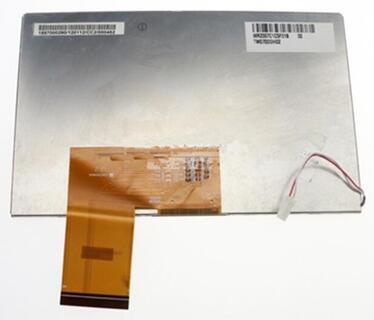

TFT LCDAVIC 7.0 inch TFT LCD Panel TM070DDH02 1024*600
Mouse over to zoom in
- Product 25/374
-
Brand: AVIC
Model: TM070DDH02
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 75/75/70/75 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 3S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 60 pins Parallel RGB (1 ch, 8-bit) , FPC
Power Supply: 3.3/11/20/-6.8V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: All MID UMPC Panel , All MP4 PMP Panel , Pad & Tablet
