Sales Record

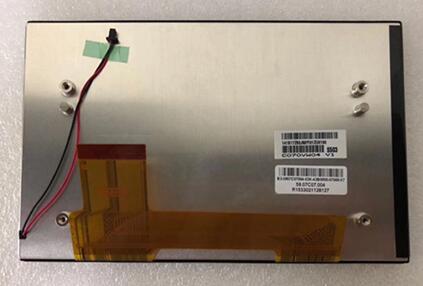

TFT LCDAUO 7.0 inch TFT LCD Panel C070VW04 V1 800*480
Mouse over to zoom in
- Product 55/374
-
Brand: AUO
Model: C070VW04 V1
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 1500:1 (Typ.) (TM)
Response Time: 10/25 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AMVA, Normally Black, Transmissive
Support Color: 262K
Lamp Type: 4S3P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 50 pins Parallel RGB (1 ch, 6-bit) , FPC
Power Supply: 3.2/12.5/15.0/-9.0V (Typ.) (VDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: Car Display Panel
