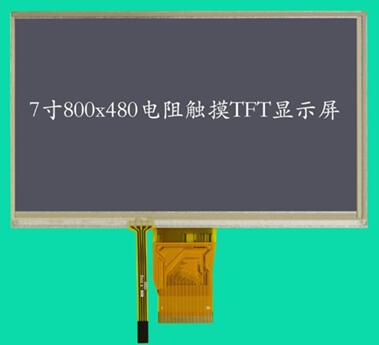

TFT LCD7 inch 50P 16.7M 24Bit RGB TFT LCD Screen 800*480
Mouse over to zoom in
- Product 275/374
-
Size: 7.0 inch
LCD Type: TFT
Number of Dots: 800(RGB)*480
LCD Dimension: 165.00*100.00*4.8mm
Active Area: 154.08*85.92mm
Dot Pitch: 0.1926*0.179mm
PIN NO.: 50P
Display Color: 16.7M
Backlight: White LED
Color Pixel Arrangement: RGB Stripe
Polarizer Mode: Transmissive Type, Normally White Mode
Viewing Direction: 6 o’clock
Data Interface: 24bit RGB interface
Brightness: 200 (typ.)
Contrast Ratio (CR): 300:1
NTSC (Color gamut): 50%
Backlight Voltage: 9.6V (typ.)
Backlight Current: 120mA (typ.)
Operating Temp.: -20 ~ 70 degree
Storage Temp.: -30 ~ 80 degree
ROSH
