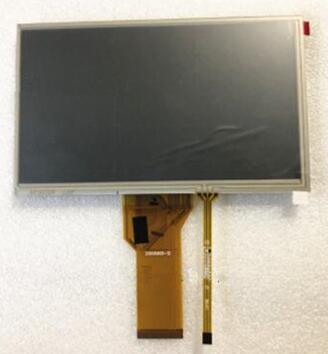

TFT LCDCHIMEI INNOLUX 7.0 inch TFT LCD DJ070NA-03A TP
Mouse over to zoom in
- Product 227/374
-
Brand: CHIMEI INNOLUX
Model: DJ070NA-03A
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K /16.7M 50% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 50 pins Parallel RGB (1 ch, 6/8-bit) , FPC
Power Supply: 3.3/10.4/16.0/-7.0V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -30 ~ 85 °C
Application: Car Display Panel
