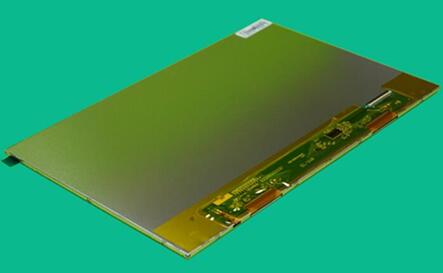

TFT LCDIPS 10.1 inch 40P 16.7M LVDS TFT LCD Screen 1280*800
Mouse over to zoom in
- Product 71/108
-
Size: 10.1 inch IPS
LCD Type: TFT
Number of Dots: 1280(RGB)*800
LCD Dimension: 229.46*149.10*2.55mm
Active Area: 216.96*135.60mm
Dot Pitch: 0.1695*0.1695mm
PIN NO.: 40P
Display Color: 16.7M
Backlight: White LED
Color Pixel Arrangement: RGB Stripe
Polarizer Mode: Transmissive Type, Normally White Mode
Viewing Direction: Free (85/85/85/85)
Data Interface: LVDS interface
CTP Interface: I2C interface
Brightness: 200 (typ.)
Contrast Ratio (CR): 500:1
NTSC (Color gamut): 60%
Backlight Voltage: 9.6V (typ.)
Backlight Current: 200mA (typ.)
Operating Temp.: -10 ~ 60 degree
Storage Temp.: -20 ~ 70 degree
ROSH
