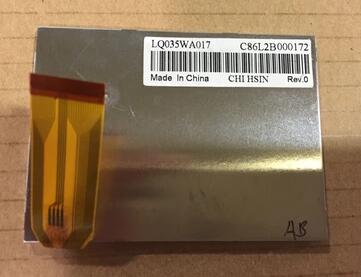

TFT LCDCHILIN 3.5 inch TFT LCD Panel LQ035WA017 480*234
Mouse over to zoom in
- Product 168/203
-
Brand: CHILIN
Model: LQ035WA017
Diagonal Size: 3.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×234
Configuration: RGB Stripe
Surface: Antiglare
Brightness: 240 cd/m² (Typ.)
Contrast Ratio: 120:1 (Typ.) (TM)
Response Time: 15/25 (Typ.)(Tr/Td) ms
Viewing Angle: 50/50/15/35 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: Full Color
Lamp Type: 3S2P WLED
Frame Rate:
Touch Panel: Without
Interface Type: TFT Specific Analog RGB, 30 pins , FPC
Power Supply: 3.3/3.3/3.3V (Typ.) (VCC/DVDD/AVDD)
Operating Temperature: 0 ~ 60°C
Storage Temperature: -20 ~ 70 °C
Application: Digital Still Camera Panel, Digital Video Camera Panel
