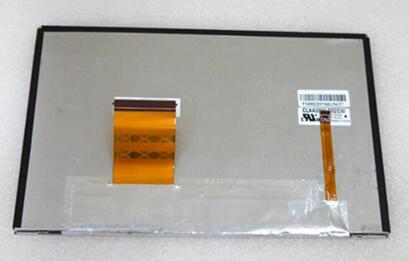

TFT LCDCPT 8.0 inch TFT LCD CLAA080LG02CW 800*480
Mouse over to zoom in
- Product 47/121
-
Brand: CPT
Model: CLAA080LG02CW
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 550 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Response Time: 12 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/60/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 76% (CIE1931)
Lamp Type: 9S4P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 60 pins TTL (1 ch, 6-bit) , Connector
Power Supply: 3.3/12.0/18.0/-6.0V (Typ.) (VCC/VDDA/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 90 °C
Application: Car Display Panel
