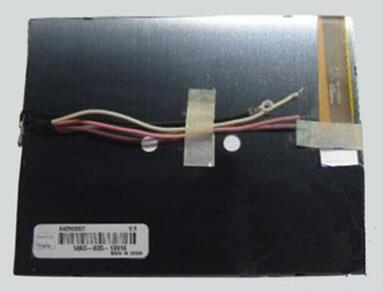

TFT LCDINNOLUX 5.6 inch TFT LCD Panel AT056TN01 320*234
Mouse over to zoom in
- Product 17/18
-
Brand: INNOLUX
Model: AT056TN01
Diagonal Size: 5.6 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×234
Configuration: RGB Vertical Stripe
Surface:
Brightness: 330 cd/m² (Typ.)
Contrast Ratio: 150:1 (Typ.) (TM)
Response Time: 35 (Typ.)(Tr+Td) ms
Viewing Angle: 45/45/10/30 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Best View on: 6 o’clock
Support Color: Full Color
Lamp Type: 1 pcs CCFL
Frame Rate:
Touch Panel: Without
Interface Type: TFT Specific Analog RGB , 26 pins , FPC
Power Supply: 5/5/15V (Typ.) (VCC/AVDD/VGH)
Operating Temperature: -10 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel, Video Door Phone Panel
