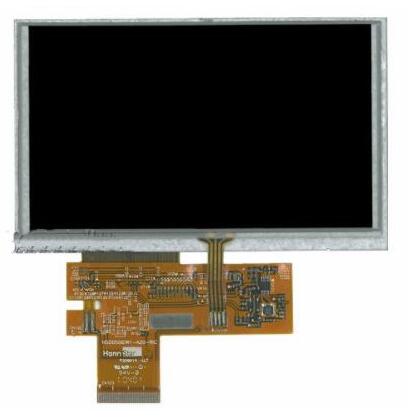

TFT LCD5" HD TFT LCD HSD050IDW1-A20 721Q310014-AO TP
Mouse over to zoom in
- Product 26/100
-
Panel Brand: HannStar
Panel Model: HSD050IDW1-A20
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Harding coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 16.2M (6-bit + FRC)
Response Rime: 2/6 (Typ.) (Tr/Td) (ms)
Viewing Angle: 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S2P WLED
Signal Interface: TTL (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Car Display Panel, All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel, All MID UMPC Panel, All Game Machine Panel
