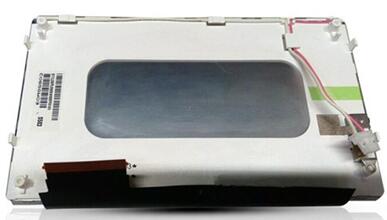

TFT LCDAUO 6.5 inch TFT LCD Screen C065GW03 V0 No TP
Mouse over to zoom in
- Product 27/28
-
Panel Brand: AUO
Panel Model: C065GW03 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 6.5 inch
Resolution: 400(RGB)*240 WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Hard coating (3H)
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 15/20 (Typ.)(Tr/Td)
Viewing Angle: 60/60/45/60 (Typ.) (L/R/U/D)
Frequency: /
Lamp Type: 1 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage:3.3/9.8/15/-7V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
