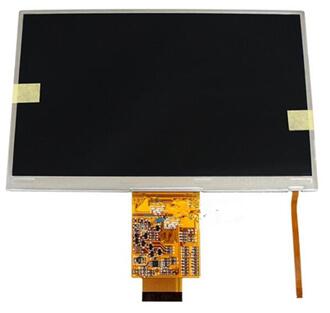

TFT LCDLG 7.0 inch TFT LCD Screen LB070WV4-TD02 800*480
Mouse over to zoom in
- Product 244/374
-
Brand: /
Model: LB070WV4-TD02
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Horizontal Stripe
Surface: Antiglare
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 65/65/50/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 49% (CIE1931)
Lamp Type: 8S3P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 40 pins Parallel RGB (1 ch, 8-bit) , FPC
Power Supply: 3.3V (Typ.) (VCC)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: MP4 PMP Panel, Digital Photo Frame Panel, Portable DVD Player Panel, VOIP Phone Panel
