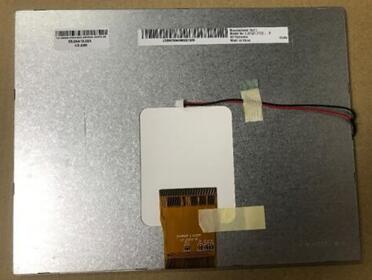

AUO 8.0 inch TFT LCD Screen A080STN01.0 800*600
Mouse over to zoom in
Product 53/121

Price: US$22.00   Submit a wholesale Inquiry
Quantity:



Brand: AUO

Model: A080STN01.0

Diagonal Size: 8.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 800×600(RGB)  SVGA

Configuration: RGB Horizontal Stripe

Surface: Antiglare, Hard Coating (3H)

Brightness: 250 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.) (TM)

Response Time: 12/18 (Typ.)(Tr/Td) ms

Viewing Angle: 70/70/60/65 (Typ.)(CR≥10)

Operating Mode: TN, Normally White, Transmissive

Support Color: 16.2M   50% (CIE1931)

Lamp Type: 3S6P WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: TTL (1 ch, 8-bit) +SPI , FPC , 60 pins

Power Supply: 3.3/5/-5/14/-14V (Typ.) (VDDIO/VDPA/VDNA/VGH/VGL)

Operating Temperature: -10 ~ 60°C

Storage Temperature: -30 ~ 70 °C

Application: Digital Photo Frame Panel, Portable DVD Player Panel
