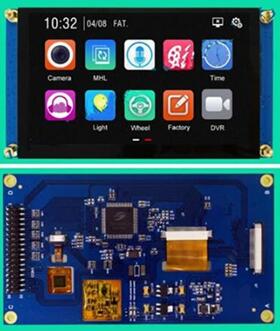

5 inch 16Bit MCU TFT LCD Capacitive Touch Module
Mouse over to zoom in
Product 165/193

Price: US$48.00   Submit a wholesale Inquiry
Quantity:



Size: 5.0 inch

Module Struchure: LCD Display + CTP Touch + PCB

LCD Type: TFT

Number of Dots: 800(RGB)*480

LCD Dimension: 136.00*76.05*7.27mm

Active Area: 108.00*64.80mm

Dot Pitch: 0.135*0.135mm

PIN NO.: 40P & 34P

Display Color: 65K

Backlight: White LED

Color Pixel Arrangement: RGB Stripe

Polarizer Mode: Transmissive

Viewing Direction: 6 o’clock

Data Interface: 16bit MCU interface

CTP Interface: I2C interface

Brightness: 400 (typ.)

Contrast Ratio (CR): 400:1

NTSC (Color gamut): 50%

Module Input Voltage: 5.0V

Operating Temp.: -20 ~ 70 degree

Storage Temp.: -30 ~ 80 degree

ROSH



CTP Characteristics

CPT Structure Type: Cover Glass + ITO Glass (G+G)

Resolution: 800*480

Surface Hardness: ≥ 6H

Transparency: > 85%

Interface Type: I2C

I2C Slave Address (7bit): 0x14 or 0x15

Support Point: 5

Supply Voltage: 3.3V
