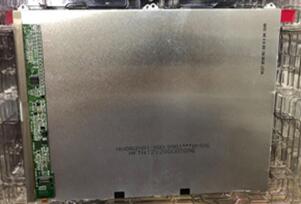

TFT LCD8.0 inch TFT LCD Screen HV080X01-100 XGA 768*1024
Mouse over to zoom in
- Product 93/121
-
Brand: HYDIS
Screen Size: 8.0 inch
Model: HV080X01-100
Screen Type: LCM, a-Si TFT-LCD
Pixel Number: 768(RGB)*1024 XGA
Arrangement: RGB Vertical Stripe
Treatment:
Luminance: 450 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)
Work Mode: HFFS, Normally Black, Transmissive
Color Depth: 16.7M 55% (CIE1931)
Backlight: WLED
Frame Rate: 60Hz
Signal Type: 34 pins, MIPI , Connector
Voltage Supply: 3.3V (Typ.)
Storage Temp.: -30 – 70 degree
Operating Temp.: -20 – 60 degree
