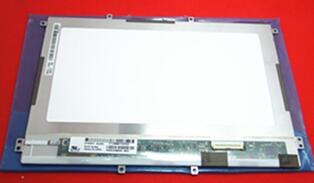

TFT LCD10.1 inch TFT LCD LP101WX1-SLN2 WXGA 1280*800
Mouse over to zoom in
- Product 62/108
-
Model: LP101WX1-SLN2
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800 WXGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haze 0%), Reflection 1.5% (Typ.)
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 35 (Typ.)(Tr+Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: IPS, Normally Black, Transmissive
Support Color: 262K
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6-bit), 40 pins , Connector
Power Supply: 3.3/12.5/15.0/-9.0V (Typ.) (VDD/AVDD/VGH/VGL)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
