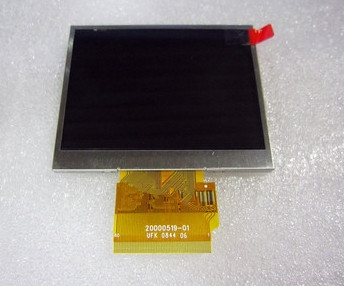

TFT LCDINNOLUX 3.5 inch TFT LCD PT035TN23 V.1 320*240
Mouse over to zoom in
- Product 165/203
-
Panel Brand: INNOLUX
Panel Model: PT035TN23 V.1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 9/16 (Typ.) (Tr/Td) (ms)
Viewing Angle: 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S1P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)+SPI
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Digital Still Camera Panel, All Portable Navigation Device Panel, All Pocket TV Panel, All Video Door Phone Panel
