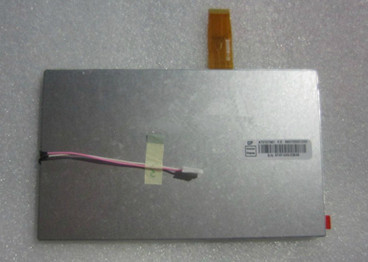

TFT LCDINNOLUX 7" TFT LCD Analog Screen AT070TN07 V.2
Mouse over to zoom in
- Product 212/374
-
Panel Brand: INNOLUX
Panel Model: AT070TN07 V.2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: Full Color
Response Rime: 15/20 (Typ.) (Tr/Td)
Viewing Angle: 60/60/40/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S9P WLED
Signal Interface: TFT Specific Analog RGB
Input Voltage: (3.3/5.0)/5.0/15.0/-10.0 (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
