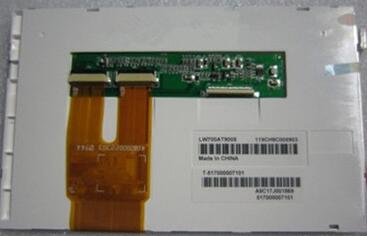

TFT LCDChiHsin 7.0" TFT LCD TCOM Screen LW700AT9005
Mouse over to zoom in
- Product 203/374
-
Panel Brand: ChiHsin
Panel Model: LW700AT9005
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 200 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 5/11 (Typ.) (Tr/Td)
Viewing Angle: 70/70/60/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S5P WLED
Signal Interface: TTL (1 ch, 6-bit)
Input Voltage: 3.3/12/18/-7V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All MP4 PMP Panel, All Digital Photo Frame Panel, All Portable DVD Player Panel, All VOIP Phone Panel
