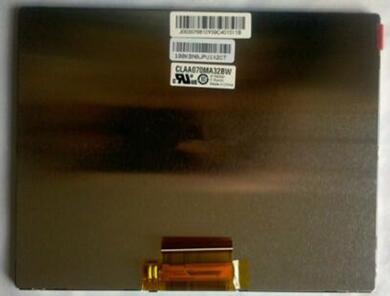

TFT LCDCPT 7.0 inch TFT LCD CLAA070MA32BW 800*600
Mouse over to zoom in
- Product 46/374
-
Panel Brand: CPT
Panel Model: CLAA070MA32BW
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, TMR
Surface: Antiglare
Brightness: 150 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 20 (Typ.) (Tr+Td) (ms)
Viewing Angle: 50/70/70/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 2S7P WLED
Signal Interface: TTL (1 ch, 8-bit)
Input Voltage: 3.3/9.6/18/-6V (Typ.) (VCC/ACDD/VGH/VGL)
RoHS
Application: All E-Book Reader Panel
