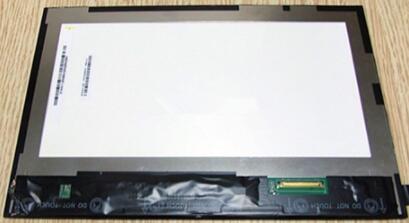

TFT LCDIPS 10.1 inch 40P TFT LCD BP101WX1-206 1024*600
Mouse over to zoom in
- Product 66/108
-
Display size: 10.1 inch
Dimension: 235 (W) X145.5 (H) X5.2 (D) mm
Visual area: 222.72 (W) X125.28 (H) mm
Points from: 0.0925 (W) X0.276 (H) mm
Resolution: 1024RGB (H) × 600 (V)
Visual angle L70 ° R70 ° U50 ° D70
Panel type: TFT
Color: 262K
The ratio: 300:1
Brightness: 250cd/m2
Interface type Digital (TTL)
Connection number: 60 PIN (double 30PIN)
Back light: LED
Response time: 5-28ms
Working temperature: -20 ~ 80 degree
Weight: 293 g
Application: mobile DVD, digital photo frame, the vehicle system, multimedia applications and other audio-visual system
