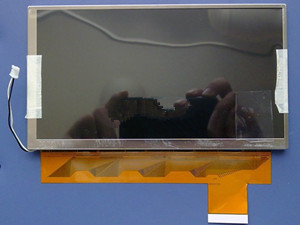

TFT LCDAUO 7.0 inch TFT LCD Screen C070VW03 V0 800*480
Mouse over to zoom in
- Product 311/374
-
Panel Brand: AUO
Panel Model: C070VW03 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare (Haze 25%)
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 6/10 (Typ.) (Tr/Td)
Viewing Angle: 60/60/40/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/9.9/15/-7V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
