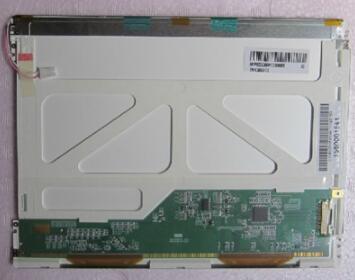

TFT LCDTIANMA 10.4" TFT LCD Screen TM104SCH02 800*600
Mouse over to zoom in
- Product 33/38
-
Panel Brand: TIANMA
Panel Model: TM104SCH02
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 230 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 10/15 (Typ.) (Tr+Td)
Viewing Angle: 65/65/45/65 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 1 pcs CCFL
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V
RoHS
Application: All Industrial Application Panel
