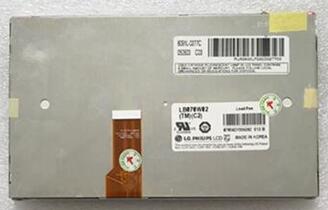

TFT LCDLG 7.0 inch TFT LCD LB070W02-TMC2 480*234
Mouse over to zoom in
- Product 67/374
-
Panel Brand: LG
Panel Model: LB070W02-TMC2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 380 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: Full Color
Response Rime: 5/25 (Typ.) (Tr/Td)
Viewing Angle: 60/60/40/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 3.5/5.0/16.5/-14.5V (Typ.) (VDD1/VDD2/VGH/VEE))
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Video Door Phone Panel
