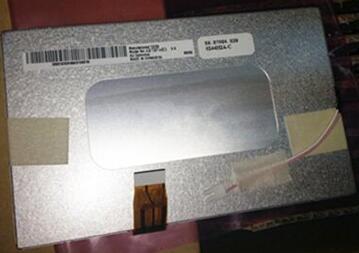

TFT LCDAUO 7.0 inch TFT LCD A070FW03 V8 480*234
Mouse over to zoom in
- Product 77/374
-
Panel Brand: AUO
Panel Model: A070FW03 V8
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution:
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, (Haze 25%)
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: Full Color
Response Rime: 12/18 (Typ.)(Tr/Td) (ms)
Viewing Angle: 65/65/40/55 (Typ.) (L/R/U/D)
Frequency: /
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: (5/3.3)/5/15/-10V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Video Camera Panel, All Portable DVD Player Panel, All Car Display Panel
