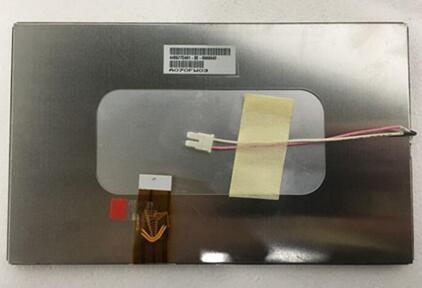

TFT LCDAUO 7.0 inch TFT LCD Screen A070FW03 V2
Mouse over to zoom in
- Product 97/374
-
Panel Brand: AUO
Panel Model: A070FW03 V2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare (Haze 25%)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color:
Response Rime: 12/18 (Typ.)(Tr/Td)
Viewing Angle: 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Video Door Phone Panel
