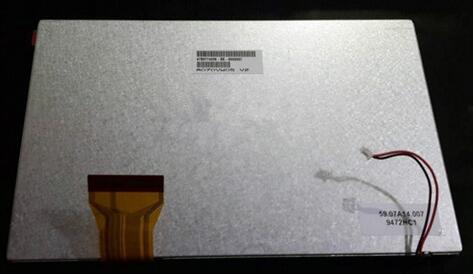

TFT LCDAUO 7.0 inch TFT LCD Panel A070VW05 V2 800*480
Mouse over to zoom in
- Product 102/374
-
Panel Brand: AUO
Panel Model: A070VW05 V2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480 WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Harding coating (3H)
Brightness: 375 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 12/18- (Typ.) (Tr/Td) (ms)
Viewing Angle: 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S9P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3/3.3/11/18/-8V (Typ.)(VDDIO/GVDDIO/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel, All Digital Photo Frame Panel
